The US Model 1840 Heavy Cavalry Sabre was built for mounted fighting at close quarters. Long, strongly curved and deliberately substantial, it gave American dragoons a more dependable weapon than the unpopular Model 1833 sword it replaced. It served in the Mexican-American War, remained in use throughout the American Civil War and became one of the most recognisable American military swords of the nineteenth century.
Collectors often call it the “Old Wristbreaker”, a nickname which captures its reputation rather better than its handling qualities. The Model 1840 is certainly heavier in the hand than the later Model 1860 Light Cavalry Sabre, but a sound original is not an iron crowbar with a brass guard. From horseback, where reach, momentum and blade authority mattered, the design made considerably more sense.
This guide examines the sabre’s construction, history, strengths, weaknesses and present collector market, including the markings that help separate an authentic military example from a reproduction or composite sword.

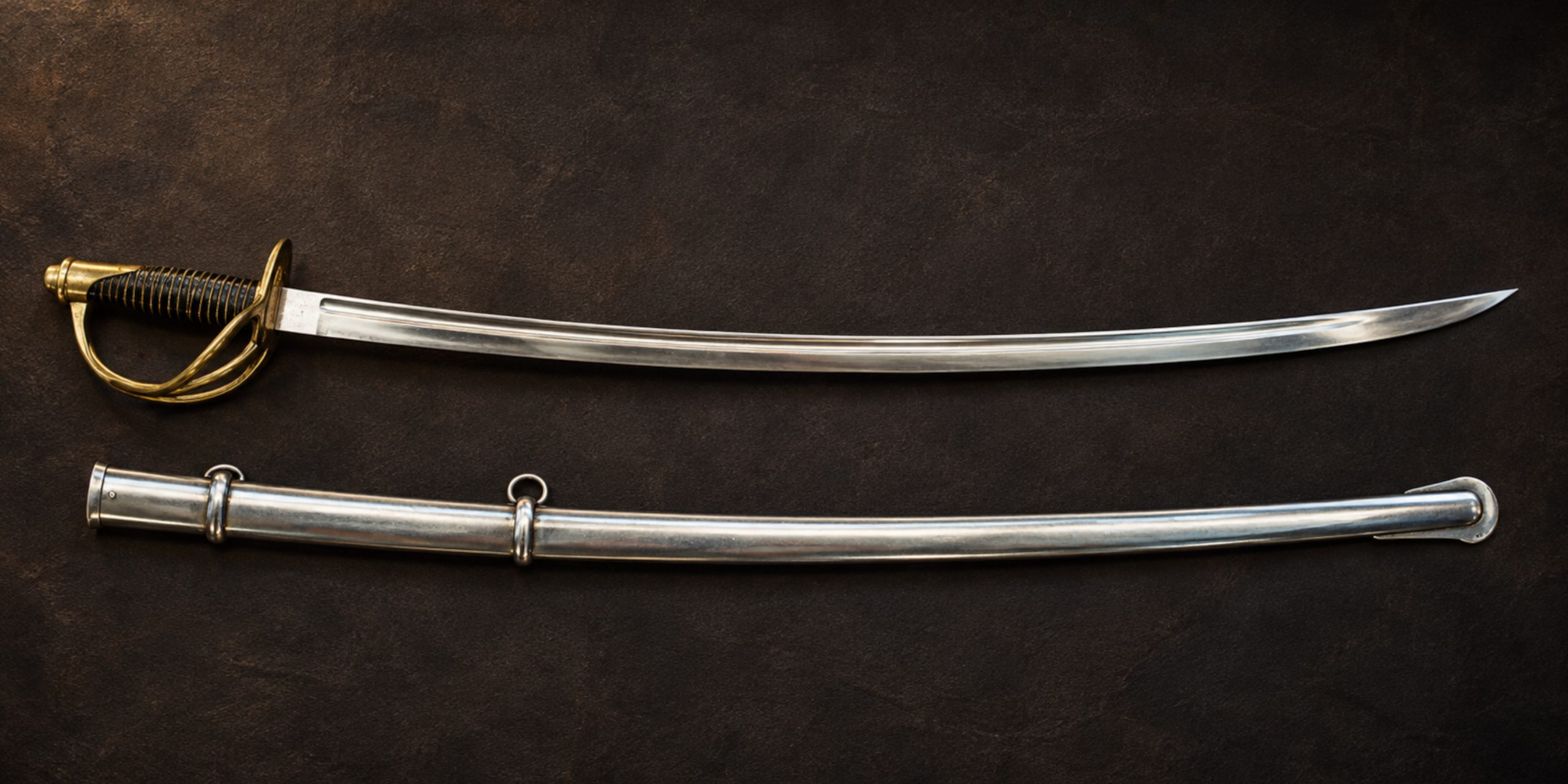

Model 1840 Heavy Cavalry Sabre Specifications
Measurements vary slightly between manufacturers and individual surviving swords. Period repairs, replacement grips and mismatched scabbards also complicate neat modern specifications.
| Feature | Typical specification |
|---|---|
| Official designation | Model 1840 Cavalry Sabre |
| Common collector name | Model 1840 Heavy Cavalry Sabre |
| Nickname | Old Wristbreaker |
| Country | United States |
| Adoption date | 1840 |
| Main service period | 1840s to the American Civil War |
| Overall length | About 43 to 44 inches, or 109 to 112 cm |
| Blade length | About 35 to 36 inches, or 89 to 91 cm |
| Blade form | Curved, single-edged blade with a broad fuller and narrow secondary fuller |
| Hilt | Cast brass three-branch guard and pommel |
| Grip | Wooden core covered in leather and bound with twisted brass wire |
| Scabbard | Iron or steel, usually with two suspension rings |
| Sword weight | Commonly around 2.5 to 3 lb, or 1.1 to 1.36 kg, with variation |
| Primary action | Powerful cut from horseback, with some thrusting capacity |
The blade follows the Montmorency-style arrangement associated with the French Model 1822 light cavalry sabre: a wide main fuller accompanied by a narrower channel near the spine. This reduced unnecessary mass while retaining stiffness. The brass guard protected the rider’s hand without enclosing it completely, while the long steel scabbard was worn from sword slings at the left side.
The Smithsonian’s National Museum of American History holds a dated 1845 N. P. Ames example. Its wider collection includes several enlisted and officer versions, useful evidence that the basic pattern existed alongside variations in finish, manufacture and ownership.

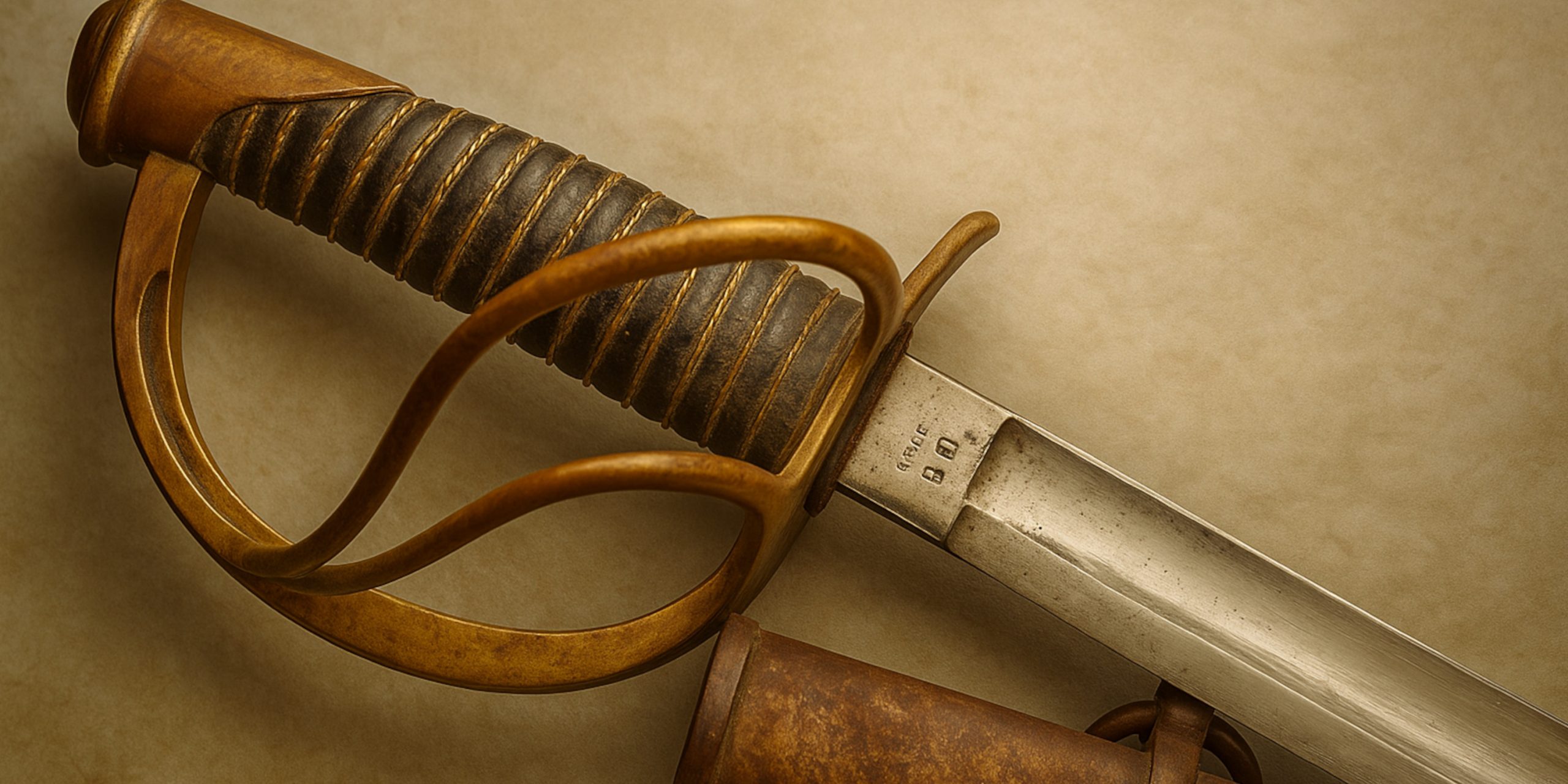

Identifying the Model 1840
The Model 1840 is frequently confused with the Model 1860 Light Cavalry Sabre. Age, polishing and replacement parts can blur the differences, so identification should rest on several features rather than one.
Typical Model 1840 characteristics include:
- A broad, relatively heavy blade with a flat back
- A long main fuller and a narrower secondary fuller
- A substantial brass three-branch guard
- A grip which is comparatively straight and lacks the stronger ergonomic swell associated with many Model 1860 examples
- A flat or slotted scabbard throat on many originals
- A ridge or strengthening feature around the quillon area of the guard
- Maker, date, inspector and United States property markings on military-contract examples
Do not identify a sword from the hilt alone. Nineteenth-century weapons were repaired, reassembled and occasionally married to whatever scabbard happened to fit. Modern reproductions can also imitate the broad silhouette while getting the blade geometry, grip shape and markings wrong.
History and Evolution
Replacing the Model 1833 Dragoon Sabre
The Model 1840 emerged from dissatisfaction with the Model 1833 Dragoon Sabre. The earlier weapon had an iron hilt and earned an unenviable reputation for poor blades and indifferent handling. The US Ordnance Department examined foreign cavalry swords during the late 1830s, and the French Model 1822 light cavalry sabre supplied the clearest design model for the replacement.
The French influence was practical rather than ornamental. France possessed long experience of equipping mounted troops, and the 1822 pattern combined hand protection, reach and a forceful cutting blade in a design suited to military production.
German imports and American manufacture
The first US contracts went to the Solingen firm Schnitzler & Kirschbaum, usually abbreviated by collectors to S&K. American manufacture followed, most importantly through N. P. Ames and the later Ames Manufacturing Company at Cabotville, Massachusetts.
Other names encountered on Model 1840-type sabres include:
- W. H. Horstmann & Sons of Philadelphia
- Tiffany & Co. of New York, often acting through suppliers and import arrangements
- Sheble & Fisher of Philadelphia
- Various German makers and importers
Contract swords, private-purchase officer sabres and wartime commercial examples should not be treated as though they all left one factory to a single immutable specification. Small variations in dimensions, grip construction, markings and finish are normal. Large inconsistencies, however, deserve suspicion.
Mexican-American War service
The Model 1840 entered active service during the Mexican-American War of 1846 to 1848. US dragoons used sabres alongside carbines and pistols, with the sword becoming most relevant after formations closed or firearms had been discharged.
The weapon’s reach and cutting authority suited mounted combat, pursuit and the confusion of a broken formation. Yet the war also belonged to an age in which firearms were steadily reducing the number of occasions when cavalry could settle matters cleanly with a blade. The sabre remained important, but it no longer ruled the battlefield without argument.
American Civil War service
Although the lighter Model 1860 was intended to supersede it, the Model 1840 remained widely available when the American Civil War began. Federal and Confederate cavalry both used the pattern, whether supplied from existing stores, purchased commercially, imported or captured.
The US National Park Service describes the Model 1840 as a holdover from the Mexican War carried by both Federal and Confederate troops. It also notes that the Model 1860 became the more commonly used Civil War sabre as it replaced the heavier weapon. See the NPS overview of Civil War weapons in the Shenandoah Valley.
Major General George B. McClellan owned an officer’s Model 1840. His sword survives in the Smithsonian collection and can be viewed through the museum’s Civil War object record. Association with a named officer greatly increases historical and monetary value, but only when the provenance is supported by firm documentary evidence.
Replacement by the Model 1860
The Model 1860 Light Cavalry Sabre reduced weight and improved handling for a cavalry force increasingly expected to scout, raid and fight dismounted. It did not make the Model 1840 instantly disappear. Military equipment rarely obeys the tidy dates beloved of reference tables.
Older sabres remained in stores and in field use throughout the Civil War. The transition was therefore gradual, with both patterns serving side by side.
How the Sabre Was Used
The Model 1840 was principally a cutting weapon. Its curve helped the blade travel through a target rather than strike and stop, while its length gave a mounted soldier useful reach. The point remained capable of thrusting, though the blade’s curvature and balance favoured the cut.
A cavalryman did not fight with the sword in isolation. The complete system included the horse, saddle, formation, speed of approach and the rider’s ability to control both mount and weapon. A sabre which feels tiring during prolonged practice on foot may behave more convincingly in a brief mounted engagement, where velocity and reach carry greater importance.
Likely battlefield roles included:
- Cutting during a mounted charge or pursuit
- Striking at enemy cavalry as the lines passed or became entangled
- Close combat after pistols or carbines had been fired
- Guard and patrol duty where a visible sidearm had practical and symbolic value
- Emergency defence when fighting dismounted
The famous nickname should not be mistaken for proof that every soldier despised the weapon. It was heavy by comparison with its successor, but its proportions reflected a genuine tactical preference for an authoritative mounted cut.
Advantages and Disadvantages
| Advantages | Disadvantages |
|---|---|
| Long reach suited mounted combat | Heavier and more tiring than the Model 1860 |
| Broad curved blade delivered powerful cuts | Less agile in prolonged fencing on foot |
| Three-branch guard offered useful hand protection | Steel scabbard added considerable carried weight |
| Robust construction tolerated military service | Large weapon could be awkward in dense terrain or confined spaces |
| Proven French-derived blade geometry | Production differences complicate exact identification |
| Strong historical association with two major American wars | Many surviving examples are worn, altered or assembled from mixed parts |
What it did well
The Model 1840 brought authority to the cut. Its length, curve and relatively substantial blade rewarded decisive movement and offered better protection than a simple stirrup hilt. It was also a durable service weapon, which matters rather more to an army than elegance in the hand.
Where it struggled
Its weight was the obvious complaint. Fatigue affected control, and a slower recovery after a committed cut could leave a rider exposed. The lighter Model 1860 responded to a sensible desire for a handier sidearm rather than proving that the earlier sabre had been useless.
Comparison with Similar Cavalry Weapons
| Weapon | Blade and handling | Main distinction |
|---|---|---|
| US Model 1833 Dragoon Sabre | Lighter-feeling but poorly regarded, with an iron hilt | Predecessor whose service reputation encouraged replacement |
| French Model 1822 Light Cavalry Sabre | Curved Montmorency-style blade with a three-branch brass guard | Principal design influence on the American Model 1840 |
| US Model 1840 Heavy Cavalry Sabre | Broad, long and cut-orientated, with substantial blade presence | Powerful American dragoon pattern used in Mexico and the Civil War |
| US Model 1860 Light Cavalry Sabre | Lighter, generally more agile and slightly more compact in feel | Successor better suited to the evolving role of American cavalry |
| British Pattern 1821 Light Cavalry Sword | Curved blade with three-bar hilt, varying by date and maker | British counterpart developed within a different procurement tradition |
Model 1840 against the French Model 1822
The resemblance is close and intentional, particularly in the guard and fullered blade. The American weapon was an adaptation, not a perfect duplicate. Markings, grip details, dimensions and manufacture distinguish the two. French state-manufactured blades often carry script inscriptions along the back, while US contract sabres use American property, maker, date and inspector marks around the ricasso.
Model 1840 against the Model 1860
The Model 1860 is the more manageable weapon for most modern handlers. It sacrifices some blade mass and apparent cutting authority in return for speed and reduced fatigue. The Model 1840 feels like a dragoon’s weapon from an earlier tactical generation; the Model 1860 reflects a more mobile and versatile cavalry service.
Markings and Manufacturers
Markings are central to identification and value. They should be photographed under angled natural light, without abrasive cleaning.
On a genuine military-contract sabre, look for combinations of:
- US property stamp
- Maker’s name and factory location
- Year of manufacture
- Inspector’s initials
- Small inspection stamps on the hilt, pommel, scabbard drag or other components
Common Ames marks can include versions of N. P. Ames, Ames Mfg. Co. and Cabotville, depending on date. German imports may bear S&K or Solingen-related marks. Exact lettering, punctuation and placement changed, so comparison with a documented example of the same date and contractor is essential.
Warning signs include:
- Fresh-looking stamps on a heavily patinated blade
- Lettering which is unusually deep, uneven or in an incorrect typeface
- A date inconsistent with the maker’s recorded business name
- Artificially darkened brass or chemically uniform patina
- A blade and hilt showing radically different levels of age
- Modern machine grinding around the ricasso
- A scabbard which fits poorly or has incompatible wear
Collectors’ Guide
What determines value
The market rewards originality and evidence. A plainly worn but honest sabre is generally preferable to a gleaming example which has been aggressively polished or assembled from unrelated parts.
The most important factors are:
- Maker: Ames and identifiable German-contract examples have broad collector recognition; scarce contractors can bring a premium.
- Date: Mexican-American War dates and Civil War dates appeal to different groups of buyers.
- Condition: An intact grip, original wire, legible marks and correctly fitting scabbard add value.
- Originality: Replacement leather, rewired grips, altered blades and mismatched scabbards reduce confidence.
- Provenance: Documented ownership by a known soldier or officer can transform the value.
- Rarity: Uncommon makers, presentation features or unusual contract variants may command considerably more.
- Decoration: Etching and officer-grade finish can increase interest, but decoration also attracts reproductions and optimistic attribution.
Indicative auction prices
Prices below are broad guide ranges in US dollars, not formal valuations. Auction premiums, tax, shipping and import costs sit on top of the hammer price. Exchange rates also move, sometimes with more enthusiasm than the bidding.
| Type and condition | Indicative auction range |
|---|---|
| Incomplete, heavily worn or without scabbard | $250 to $500 |
| Standard original example in fair to good condition | $450 to $900 |
| Strong Ames or German-contract example with clear marks and scabbard | $800 to $1,500 |
| Scarce maker, exceptional condition or desirable early date | $1,500 to $3,000 or more |
| Documented presentation or named historic association | Highly variable, potentially well above $3,000 |
These bands are consistent with ordinary market examples rather than celebrity-owned swords. As reference points, an original Horstmann example sold for $550 through Alexander Historical Auctions in 2020, while a PDL-marked Civil War example carried an estimate of $400 to $700 in a Cowan’s sale listing. The records can be consulted at Alexander Historical Auctions and Bidsquare.
Dealer asking prices can be higher than auction results and do not show what a weapon ultimately sold for. Compare completed sales wherever possible.
Before buying
- Ask for sharp photographs of both sides of the ricasso, guard, pommel, grip, scabbard throat and drag.
- Request the exact blade and overall measurements.
- Check whether the grip leather and wire are original, restored or replaced.
- Confirm whether the scabbard belongs with the sword or is merely period-compatible.
- Ask for a written condition report covering bends, cracks, loose hilts, edge damage and active rust.
- Treat undocumented stories of battlefield recovery with caution.
- Obtain a second opinion before paying a premium for rare marks or named provenance.
- Retain invoices, old collection labels, photographs and correspondence.
Care and storage
- Handle the blade with clean gloves or wipe it afterwards to remove salts from fingerprints.
- Apply a very light coat of conservation-grade microcrystalline wax or appropriate non-acidic protective oil.
- Keep the sabre in a stable, dry environment with moderate humidity.
- Do not routinely store the blade inside a damp or corroded scabbard.
- Avoid metal polish on brass if original patina matters.
- Never sand, sharpen or mechanically buff an antique blade.
- Consult a qualified arms conservator before treating active corrosion or loose components.
Over-cleaning destroys finish, markings and value. A sword does not need to resemble a kitchen tap to be historically legible.
UK legal note
The Model 1840 has a curved blade well over 50 cm, a category regulated under UK offensive-weapons law. Genuine antique examples are over 100 years old and may fall within an antique defence, but ownership, sale, delivery, importation and public carriage are separate matters. Reproductions require particular care because the antique defence will not apply.
Consult current Home Office statutory guidance and the government’s import controls for swords and other offensive weapons before buying or importing one. This is general information, not legal advice.
Where to See a Model 1840 Heavy Cavalry Sabre
Smithsonian National Museum of American History, Washington, DC
The Smithsonian holds multiple Model 1840 cavalry sabres, including enlisted, officer and Ames-manufactured examples. Search the museum’s online collection before travelling because only a fraction of the holdings are displayed at any one time.
- Model 1840 Heavy Cavalry Sabre, dated 1845, N. P. Ames
- Model 1840 associated with George B. McClellan
- Smithsonian Model 1840 collection record
Fort Scott National Historic Site, Kansas
The National Park Service’s interpretation of dragoon equipment includes the Model 1840 and places it within the wider development of mounted US service weapons. The Fort Scott dragoon weapons guide is also a useful introductory resource.
Civil War and military museums
Examples appear in American Civil War museums, state collections, military-history institutions and historic forts across the United States. Display rotations change, so contact the institution before making a special journey.
Legacy
The Model 1840 stands at the point where European Napoleonic cavalry design met expanding American military ambition. Its form came from France, its first contracts reached to Solingen, and its American manufacture was led by firms such as Ames. It was therefore an American service sword with a thoroughly international family tree.
Its reputation has been shaped by comparison with the lighter Model 1860. That comparison is fair, but it can be too neat. The Model 1840 was designed for dragoons who valued reach, durability and a heavy cut from horseback. By those standards it was a credible military weapon, not merely an obsolete burden waiting to be replaced.
For collectors, it offers a tangible connection to the Mexican-American War, the American Civil War and the rise of US arms manufacture. A well-marked example can also tell a precise story through its maker, inspection stamps, date and accumulated wear. That is where the real interest lies. Brass can be polished; history is rather less easily restored.
