Hwandudaedo: Korea’s Ring-Pommel Sword
The hwandudaedo was a straight, single-edged sword distinguished by the ring at the end of its hilt. It appeared on the Korean peninsula during the Proto-Three Kingdoms period and became especially prominent among the military and political elites of Goguryeo, Baekje, Silla and Gaya.
Some examples were practical iron weapons. Others carried gold, silver or gilt-bronze fittings and elaborate images of dragons, phoenixes and trefoil motifs. These richly decorated swords were more than expensive battlefield equipment. They advertised rank, allegiance and the authority of the ruler who could grant them.
The English label “Korean ring-pommel sword” is useful, but the form was part of a broader East Asian weapons tradition. Related swords appeared in China and the Japanese archipelago. The Korean examples nevertheless developed their own decorative vocabulary and became closely associated with the competitive court culture of the Three Kingdoms period.
Hwandudaedo specifications
Surviving swords vary considerably because hwandudaedo describes a family of weapons rather than a single regulated pattern.
| Feature | Typical characteristics |
|---|---|
| Korean name | Hwandudaedo, 환두대도 |
| Literal meaning | Ring-headed great sword or large ring-pommel blade |
| Principal period | Proto-Three Kingdoms and Three Kingdoms periods |
| Approximate date | Broadly 1st to 6th centuries AD, with the most elaborate forms concentrated in the 5th and 6th centuries |
| Overall length | Common surviving examples measure approximately 65 to 95 cm |
| Blade form | Usually straight and single-edged |
| Blade material | Forged iron |
| Cross-section | Often triangular or wedge-shaped |
| Hilt | Short, intended primarily for one-handed use |
| Pommel | Open iron, bronze or gilt-bronze ring |
| Guard | Usually small compared with later medieval swords |
| Scabbard | Wood, sometimes fitted with decorated metal mounts |
| Decoration | Gold, gilt bronze, silver plate, openwork and inlay |
| Probable use | Close combat, ceremonial display and indication of rank |
The National Museum of Korea records an ornate dragon-and-phoenix example with an overall length of 95.5 cm. A Three Kingdoms-period iron sword in the Ulsan Museum collection measures 84.8 cm, while a Silla example in the National Buyeo Museum measures 68.7 cm. This variation warns against treating any single set of measurements as a universal standard.
A three-leaf ring-pommel sword from Gimhae has a total length of 81.3 cm. Its surviving blade is 62.8 cm long and between 2.3 and 3.1 cm wide. X-ray examination revealed holes used to secure the hilt components, offering a particularly useful look beneath the corrosion and decoration.
What does hwandudaedo mean?
The name is formed from Korean terms describing the weapon’s most visible features:
- Hwan refers to a ring.
- Du refers to the head or end.
- Dae means large.
- Do denotes a single-edged blade or sword.
It is therefore better understood as a descriptive archaeological term than the name of one tightly standardised sword model.
The spelling also varies in English. Hwandudaedo, hwandu-daedo and hwandu taedo may all appear in books, catalogues and museum material. “Ring-pommel sword” remains the clearest translation for a general readership.
Construction and design

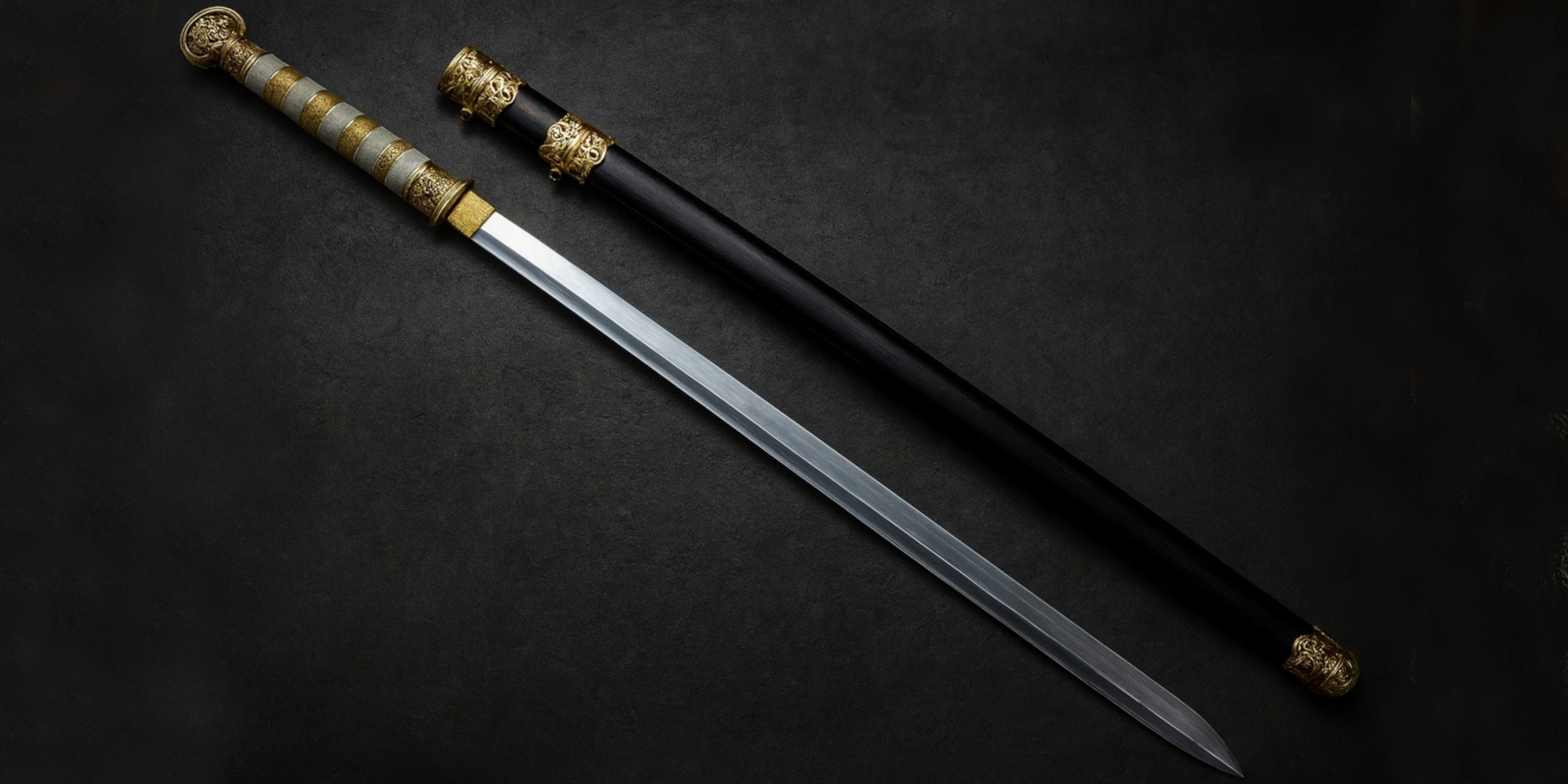

The typical hwandudaedo had a straight iron blade with one sharpened edge and a relatively thick back. This construction suited cutting while retaining enough rigidity for forceful thrusts. The blade was mounted in a wooden or organic grip, most of which has naturally disappeared from excavated specimens.
At the end of the tang sat the defining ring pommel. On relatively plain weapons this might consist of a simple iron loop. More prestigious swords placed openwork symbols within the ring or covered the fitting with precious metal.
A compact guard protected the hand, although it offered less coverage than the developed crossguards familiar from European medieval swords. The complete weapon was carried in a wooden scabbard, sometimes enriched with gilt-bronze, silver or gold fittings.
The ring may also have had a practical purpose. Goguryeo tomb imagery suggests that a strap could be passed between the pommel and the wrist, helping the bearer retain the weapon. That is plausible, but the grander rings were clearly designed to be seen. A gold dragon is a rather extravagant solution if the only problem is dropping one’s sword.
Principal pommel forms
| Type | Distinguishing feature | Likely significance |
|---|---|---|
| Plain ring | Empty circular or oval pommel | Practical form and lower level of display |
| Three-leaf motif | Trefoil ornament inside the ring | Elite rank, especially in Silla and Gaya contexts |
| Three-ring design | Three smaller rings arranged within or around the main form | Associated with particularly high status |
| Dragon motif | One or more stylised dragons | Authority, power and elite patronage |
| Phoenix motif | Phoenix or sacred bird inside the ring | Royal, aristocratic or ceremonial associations |
| Dragon-and-phoenix form | Combined animal imagery and precious-metal decoration | Among the most prestigious surviving examples |
The Gyeongju National Museum classifies Silla ring pommels by plain, three-leaf, dragon, phoenix and dragon-head designs. It also notes that dragon and phoenix ornaments belonged to the later stages of the tradition.
History and evolution
Origins in the Early Iron Age
Ring-pommel weapons originated within a wider East Asian technological and artistic tradition. Related forms were used in Han China and travelled through political contact, migration, warfare and exchange.
Early examples on the Korean peninsula were comparatively simple. Their principal features were a straight single-edged iron blade and an undecorated ring formed at the end of the hilt. These swords emerged at a time when access to iron weapons was closely connected with political power.
It would be misleading to describe the hwandudaedo as developing in isolation. Its history belongs to the movement of ideas across China, Korea and Japan. Korean smiths and patrons did not merely copy an imported form, however. They adapted it until the decoration and social meaning reflected the peninsula’s own competing kingdoms.
The Proto-Three Kingdoms period
During the early centuries AD, ring-pommel swords appeared in burials associated with emerging regional leaders. The sword could serve as both a weapon and evidence of the deceased person’s place within a developing political order.
Early pommels were usually plain. Decoration grew more sophisticated as rulers gained access to specialist craftsmen, precious metals and increasingly elaborate systems of patronage.
Expansion during the 4th and 5th centuries
By the 4th and 5th centuries, hwandudaedo were present across Goguryeo, Baekje, Silla and Gaya territory. The form was no longer confined to one region or kingdom, although local workshops produced recognisable differences in construction and ornament.
The swords became closely connected with political relationships. A ruler could bestow an ornate weapon upon a regional leader, turning the sword into visible proof of favour and obligation. The Jinju National Museum explicitly interprets large ring-pommel swords from Gaya and Silla tombs as gifts granted to regional leaders.
The growth in numbers during the 5th century probably reflects both increased production and the expansion of ranked military elites. The sword had become a language of power which could be read across a burial chamber without requiring anyone to trouble themselves with a written explanation.
The height of decoration

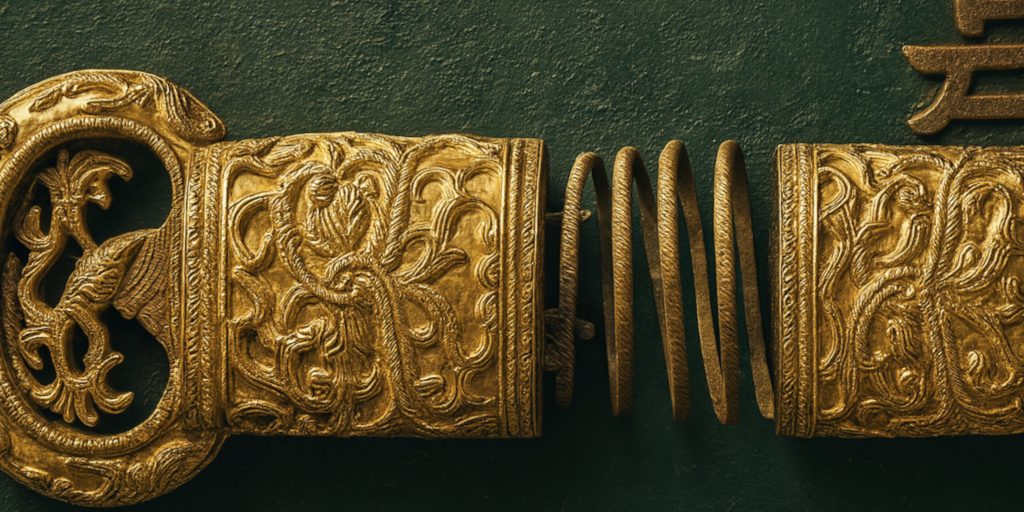

The most elaborate surviving examples date mainly from the 5th and 6th centuries. Craftsmen introduced:
- Gold and silver plating
- Gilt-bronze hilt fittings
- Openwork decoration
- Trefoil designs
- Dragons and phoenixes
- Patterned scabbard mounts
- Fine metal inlay
These weapons belonged to an aristocratic culture in which personal equipment communicated status. The quality of the pommel, grip covering and scabbard could matter as much socially as the blade itself.
The famous swords from Silla and Gaya royal or elite tombs demonstrate this particularly well. The National Museum of Korea describes dragon and phoenix ring-pommel swords as prestige goods whose ownership was restricted by political rank.
Decline during the 6th century
Archaeological finds become less frequent during the 6th century. This does not mean that Korean warriors abruptly stopped carrying swords. Rather, the old ring-pommel tradition lost its dominant place as military organisation, burial customs and sword design changed.
Later Korean swords increasingly followed different hilt and scabbard arrangements. Curved blades eventually became more familiar, particularly under the influence of changing mounted warfare and continued contact with neighbouring cultures.
The hwandudaedo consequently belongs to a distinct phase in Korean military history. It should not be treated as an early version of every later Korean sword.
How was the hwandudaedo used?
The hwandudaedo was principally a one-handed weapon. Its straight, single-edged blade favoured cutting strokes, but the shape also allowed thrusting. The precise handling characteristics would have depended on blade length, thickness and the weight of the pommel fittings.
Likely battlefield roles included:
- Cutting at unarmoured limbs and the head
- Thrusting into gaps in armour
- Fighting after a spear or bow had become impractical
- Use from foot or horseback
- Personal defence by officers and retainers
- Ceremonial wear during military and court gatherings
The sword was probably not the principal weapon of every warrior who carried one. Spears and bows offered greater reach and obvious tactical advantages. A sword was more useful once formations closed, a spear broke or a mounted warrior needed something manageable at short range.
Lavishly decorated swords may still have been functional, but their archaeological context often points towards ceremonial and political importance. A gold-covered pommel does not improve the edge. It does improve one’s arrival at court.
Advantages and disadvantages
Advantages
- Strong cutting blade: The thick-backed, single-edged construction provided a durable cutting edge.
- Useful point: Unlike heavily curved sabres, the straight blade remained suitable for thrusting.
- Manageable length: Most examples were compact enough for one-handed use in close fighting.
- Secure hilt: The ring could support a wrist strap or lanyard.
- Clear status symbol: Elaborate fittings immediately identified the bearer as a person of rank.
- Flexible construction: The design ranged from plain military swords to exceptionally ornate presentation weapons.
- Relatively robust form: Its simple blade geometry was less delicate than many narrow double-edged swords.
Disadvantages
- Limited hand protection: The small guard gave less protection than a substantial crossguard.
- Shorter reach: Many examples were shorter than later cavalry sabres and long two-handed swords.
- Cost of decoration: Precious-metal fittings added expense without improving the cutting performance.
- Possible pommel weight: A large ornamental ring could affect balance, although this varied between examples.
- Dependent on iron quality: Performance was governed by the smith’s control of forging, heat treatment and edge construction.
- Less specialised than later weapons: It combined cutting and thrusting reasonably well but was not optimised for either heavy armour penetration or long-reach cavalry combat.
These strengths and weaknesses are deductions from the weapon’s construction. No surviving Three Kingdoms-period Korean fencing manual explains its techniques, so detailed claims about formal hwandudaedo fighting systems should be treated with suspicion.
Hwandudaedo compared with similar swords
| Weapon | Region and period | Blade | Hilt or pommel | Main distinction |
|---|---|---|---|---|
| Hwandudaedo | Korea, chiefly 1st to 6th centuries | Straight, usually single-edged | Distinctive ring pommel | Combined military function with elite rank symbolism |
| Chinese huanshou dao | Han and post-Han China | Straight, single-edged | Ring pommel | Important related tradition which influenced neighbouring regions |
| Japanese chokutō | Kofun and Asuka-period Japan | Straight, commonly single-edged | Several pommel forms, including ring types | Closely connected to continental technology and imported prestige goods |
| Korean hwando | Mainly Goryeo and Joseon periods | Usually curved, single-edged | Conventional capped pommel | Later military sword, suited to different systems of wear and combat |
| Chiljido | Associated with Baekje and Japan | Straight blade with six projections | Ceremonial construction | Diplomatic or ritual object rather than a normal fighting sword |
| Jian | China, used across many periods | Straight and double-edged | Solid pommel | Better suited to balanced cutting and thrusting from either edge |
| Katana | Japan, mainly later medieval and early modern periods | Curved, single-edged | Two-handed hilt | Later cutting sword with very different mounting and handling |
The hwandudaedo is sometimes loosely compared with the katana because both are East Asian single-edged swords. The resemblance is superficial. They arose in different periods, used different hilt structures and belonged to very different military cultures.
Its closest comparison is the Chinese ring-pommel dao. The relationship between the two reflects the spread of ironworking, military fashion and political symbolism across East Asia.
Archaeological evidence
Most surviving hwandudaedo have been recovered from tombs rather than battlefields. Burial conditions often destroyed wooden grips, scabbards and textiles but preserved iron blades and metal fittings, albeit heavily corroded.
Important discoveries have come from:
- Royal and aristocratic tombs around Gyeongju
- Gaya burials in Gimhae, Changnyeong and Hapcheon
- Baekje royal and elite tombs
- Goguryeo tomb paintings
- Regional Silla burials in Gangneung
- Tomb complexes in North and South Gyeongsang provinces
Their placement within graves is significant. Swords were commonly positioned beside the deceased, sometimes alongside armour, horse equipment, crowns, jewellery and decorated belts. The association identifies them as part of an elite warrior identity.
A sword from Chodang-dong in Gangneung was found in a late 5th-century tomb and has silver-plated hilt fittings. The Chuncheon National Museum interprets it as belonging to a lower-middle-ranking member of the Silla elite. Its comparatively plain pommel was itself part of a hierarchy, with three-ring and trefoil designs indicating higher status.
Scientific investigation has added information that surface examination cannot provide. X-radiography can reveal rivet holes, welds and concealed construction beneath corrosion. Metallurgical analysis may also distinguish blade manufacture from the production of bronze or precious-metal fittings.
The hwandudaedo as a symbol of rank
The ring pommel acted almost like a badge of office. Decoration could identify where its owner stood within a network of royal and regional power.
Several factors appear to have conveyed status:
- Complexity of the pommel design
- Use of dragon or phoenix imagery
- Gold, silver or gilt-bronze surfaces
- Quality of the grip and scabbard fittings
- Placement within the tomb
- Association with crowns, armour and horse equipment
- Scale and richness of the burial itself
This political function helps explain why closely related designs appear in widely separated regions. Swords could move through diplomatic exchange, military reward, marriage alliances and the circulation of craftsmen.
Finding a Silla-style sword outside the kingdom’s central territory does not automatically prove that its owner was ethnically Silla. It may instead record political influence, imitation, trade or a gift intended to secure loyalty. Archaeology is rarely kind enough to leave a neatly labelled receipt.
Legacy
The hwandudaedo occupies an important place in the study of early Korean state formation. It reflects the point at which a weapon could be practical equipment, portable wealth and political theatre at the same time.
Its legacy survives through:
- Museum collections across South Korea
- Reconstructions used in historical exhibitions
- Korean television and cinema
- Historical martial arts communities
- Academic study of Three Kingdoms metallurgy
- Modern replicas and commemorative sculptures
- Renewed interest in the military culture of Silla, Baekje, Goguryeo and Gaya
Modern portrayals sometimes make the sword much larger, more curved or more elaborate than archaeological examples. Fantasy designers are rather fond of adding several centuries of weapon development whenever an ancient blade looks insufficiently dramatic.
A convincing reconstruction should retain the straight blade, compact guard and clearly defined ring pommel. Decoration should be based on a specific archaeological example rather than assembled from vaguely “Asian” motifs.
Where to see a hwandudaedo
Museum displays change, and important objects may be removed temporarily for conservation or loan. Check current gallery information before travelling.
| Museum | Location | What to look for |
|---|---|---|
| National Museum of Korea | Seoul, South Korea | Major Silla and Gaya ring-pommel swords, including dragon and phoenix decoration |
| Gyeongju National Museum | Gyeongju, South Korea | Silla weapons and tomb finds from the kingdom’s political heartland |
| Gimhae National Museum | Gimhae, South Korea | Gaya archaeology, including iron swords and elite grave goods |
| Jinju National Museum | Jinju, South Korea | Gaya material and a dragon-and-phoenix ring-pommel sword from Changnyeong |
| Buyeo National Museum | Buyeo, South Korea | Baekje and regional Three Kingdoms-period weapons |
| Gongju National Museum | Gongju, South Korea | Finds associated with Baekje, including the royal culture of King Muryeong’s period |
| Chuncheon National Museum | Chuncheon, South Korea | Silla-period ring-pommel finds from Gangwon Province |
| Tokyo National Museum | Tokyo, Japan | Korean Three Kingdoms-period swords, including a Silla trefoil ring-pommel example |
The hwandudaedo with a trefoil ornament held by the Tokyo National Museum can also be viewed through Japan’s ColBase collections database.
Collectors’ guide
Can you buy an original hwandudaedo?
Genuine Three Kingdoms-period hwandudaedo are archaeological objects of exceptional cultural importance. Legitimately documented examples are overwhelmingly held by museums or protected collections. They almost never enter the ordinary international arms market.
Any supposed original offered without a detailed ownership history should be approached with extreme caution. Risks include:
- Modern replicas artificially corroded to appear ancient
- Chinese or Japanese ring-pommel swords described as Korean
- Excavated material removed illegally
- Composite swords assembled from unrelated fragments
- Incorrect dating based solely on the presence of a ring
- Later tourist pieces given an imaginative Three Kingdoms provenance
A seller’s confident description is not provenance. Nor, regrettably, is a certificate printed in an impressive typeface.
Indicative market prices
There is no dependable auction-price range for authenticated hwandudaedo because legitimate original examples appear so rarely. The practical market is dominated by replicas, reconstructions and objects described rather loosely as Korean ring-pommel swords.
| Collectable type | Indicative price | Comments |
|---|---|---|
| Decorative wall-hanger | £70 to £180 | Often loosely inspired by Korean designs |
| Entry-level functional reproduction | £150 to £350 | Check steel, heat treatment and tang construction |
| Better historical reconstruction | £400 to £1,000 | Usually made in small numbers with improved fittings |
| Custom-made hwandudaedo | £1,000 to £3,000 or more | Price depends on research, forging, decoration and scabbard work |
| Modern Korean art sword | £700 to £2,500 | May be well made but not necessarily an archaeological reproduction |
| Claimed ancient example | No reliable standard | Specialist authentication and legal documentation are essential |
These figures are best treated as broad retail and secondary-market guidance rather than a formal auction index. Prices vary with exchange rates, shipping, import charges and whether a blade is sharpened.
What to look for in a reproduction
- A straight, single-edged blade
- Proportions based on a documented museum specimen
- A compact guard rather than a large fantasy crossguard
- A properly constructed tang
- Secure pommel and hilt fittings
- An historically plausible ring design
- Clear disclosure of blade steel and heat treatment
- A wooden scabbard shaped for the blade
- Decoration based on Silla, Baekje, Gaya or Goguryeo evidence
- Honest labelling as a reproduction
Warning signs
- No information about the maker or blade steel
- A stainless-steel blade advertised for cutting
- A strongly curved katana blade fitted with a ring pommel
- Mixed Korean, Chinese and Japanese decoration without explanation
- Claims that the design was used unchanged for thousands of years
- Artificial rust presented as proof of antiquity
- An alleged excavated sword with no export documentation
- A price that is implausibly low for a genuine archaeological object
Legal considerations
UK buyers should check current rules governing the importation, sale and possession of curved swords and other bladed articles. Although many hwandudaedo reproductions have straight blades, broader weapons legislation and rules on age-restricted sales may still apply.
Anyone considering an ancient specimen should also establish:
- Its documented ownership history
- The date and country of export
- Whether it was legally excavated
- Whether cultural-property restrictions apply
- Whether the auction house offers a meaningful guarantee
- Whether an independent specialist has examined it
For most collectors, a researched modern reconstruction is the more responsible purchase. It is also considerably less likely to result in an uncomfortable conversation with customs officers or a cultural-heritage authority.
Frequently asked questions
Was the hwandudaedo a Korean longsword?
Not in the European sense. Most examples were one-handed swords measuring roughly 65 to 95 cm overall. The translation “large sword” distinguishes the weapon from shorter knives and blades rather than identifying it as a two-handed longsword.
Was it double-edged?
Most hwandudaedo were single-edged. Descriptions of them as double-edged swords often result from confusion with straight Korean geom or Chinese jian.
Was the ring used to attach a cord?
It could support a wrist strap or lanyard, and Goguryeo imagery provides evidence for this practice. On highly decorated swords, however, the ring was also an unmistakable display of rank.
Did every Korean warrior carry one?
No. Swords were costly, and ornate hwandudaedo were closely associated with military and political elites. Spears and bows were more important across many battlefield situations.
Is the hwandudaedo related to the Japanese katana?
Only distantly within the wider history of East Asian single-edged swords. It is more closely related in form and date to Chinese ring-pommel dao and early Japanese chokutō.
Were decorated hwandudaedo used in combat?
Some probably remained functional weapons, but the richest examples also served ceremonial and political purposes. It is rarely possible to prove whether an individual burial sword had seen battle.
Final assessment
The hwandudaedo was one of the defining weapons of early Korean elite culture. Its straight iron blade made it a credible close-combat sword, while its ring pommel offered craftsmen a compact space for increasingly sophisticated expressions of power.
Plain examples reveal the practical foundation of the design. Gold, silver, dragons and phoenixes show what happened once rulers recognised that a sword could advertise a political relationship as effectively as it could settle a personal disagreement.
Its importance therefore extends beyond weapon design. The hwandudaedo helps historians trace military technology, regional allegiance, craft specialisation and the emergence of ranked states across the Korean peninsula.
